GPS tracker Capturs Performance GSM

Free delivery in France.

129€ excl. VAT

+ choice of SIM card subscription (Europe/World)

This pack contains :

The GPS Tracker Capturs Performance GSM : 129€ excl. VAT the unit

GSM – LTE-M / NB IoT / 2G / 3G / 4G multi-operator SIM card Europe: 6,99€ excl. VAT/month (83,88€/year)

World subscription (option) : 19,99€ excl. VAT/month (239,88€/year)

Access to the Capturs premium platform/application and API

USB Type-C cable + power supply

Screwdriver + screw

20 SMS

Volume discounts: contact us

1 year subscription without commitment.
To benefit from a shorter or longer subscription, contact us.

GPS tracker Capturs Performance GSM

Free delivery in France.

129€ excl. VAT

+ choice of SIM card subscription (Europe/World)

This pack contains :

The GPS Tracker Capturs Performance GSM : 129€ excl. VAT the unit
GSM – LTE-M / NB IoT / 2G / 3G / 4G multi-operator SIM card Europe: 6,99€ excl. VAT/month (83,88€/year)
World subscription (option) : 19,99€ excl. VAT/month (239,88€/year)
Access to the Capturs premium platform/application and API
USB Type-C cable + power supply
Screwdriver + screw
20 SMS

Volume discounts: contact us

1 year subscription without commitment.
To benefit from a shorter or longer subscription, contact us.

ALL INCLUDED

Activated multi-operator SIM card included when shipping

Benefit from the best of the GSM network and all the operators available in Europe or in World according to the choice of SIM card.

Contactez-nous
Questions?
Contact us
Carte SIM incluse

Multi-operator
SIM card included

Abonnement un an inclu

GSM network (all operators included)

Prix dégressifs en fonction du volume

Degressive prices / volume: specify

Traceur GPs longue autonomie

A small, powerful, autonomous and versatile GPS tracker.

The GPS tracker can be used for a variety of purposes requiring long autonomy of use: workforce management, vehicles, boats, isolated persons, etc.

Suivi des effectifs, workforce management
Suivi des véhicules - vehicles tracking
Suivi de motos - motorcycle tracking
Suivi de bateaux, boats tracking

Suivi live Real time tracking

Live positions are sent at the programmed frequency (from a few seconds to several hours). Follow the trackers on the Capturs SaaS platform, on your computer or on your Android / iOS mobile application. Geolocation system: GPS + cellular radio triangulation.

Très longue autonomie Battery life

From several months to several years depending on activities and GPS settings. An email / SMS is sent when the battery level becomes low.

Bouton Button

A button in the centre of the GPS tracker allows you to send alerts that you have programmed.

Prise micro-usb USB Type-C

The battery of the GSM tracker is charged via a standard USB Type-C interface.

Pas besoin de téléphone No infrastructure

Capturs are “Long Range” trackers, i.e. they work everywhere, within the limits of coverage.

Réseau GSM GSM IoT LTE-M / NB-IoT Network

The best coverage in the world. The combination of GSM networks (2G/3G/4G) and 5G IoT LTE-M / NB-IoT networks. Our multi-operator SIM card solutions offer the best data/price ratio and a turnkey solution pre-configured by us (optional SIM card, please contact us).

Petit et léger Size / Weight

39x26x77mm, 93g, IPX5, the GPS tracker is light, stylish and easy to carry.

Export des données Data export

Positions and trajectories can be exported in .GPX format from the platform.

API API

Use the raw data sent by the Capturs tracker on a third party system (ERP, mapping system, CRM…) using the Capturs API.

waterproof Waterproof

The GPS tracker is IPX5 rated: it is protected against water spray from all directions.

Suivi live

Real time tracking

Live positions are sent at the programmed frequency (from a few seconds to several hours). Follow the trackers on the Capturs SaaS platform, on your computer or on your Android / iOS mobile application. Geolocation system: GPS + cellular radio triangulation.

Réseau GSM

GSM IoT LTE-M / NB-IoT network

The best coverage in the world. The combination of GSM networks (2G/3G/4G) and 5G IoT LTE-M / NB-IoT networks. Our multi-operator SIM card solutions offer the best data/price ratio and a turnkey solution pre-configured by us (optional SIM card, please contact us).

Très longue autonomie

Battery life

From several months to several years depending on activities and GPS settings. An email / SMS is sent when the battery level becomes low.

Export des données

Data export

Positions and trajectories can be exported in .GPX format from the platform.

API

API

Use the raw data sent by the Capturs tracker on a third party system (ERP, mapping system, CRM…) using the Capturs API.

Petit et léger

Size / Weight

39x26x77mm, 93g, IPX5, the GPS tracker is light, stylish and easy to carry.

Prise micro-usb

USB Type-C

The battery of the GSM tracker is charged via a standard USB Type-C interface.

Bouton

Button

A button in the centre of the GPS tracker turns the tracker on and off. It also allows you to send alerts that you have programmed.

waterproof

Waterproof

The GPS tracker is IPX5 rated: it is protected against water spray from all directions.

Pas besoin de téléphone

No infrastructure

Capturs are “Long Range” trackers, i.e. they work everywhere, within the limits of coverage.

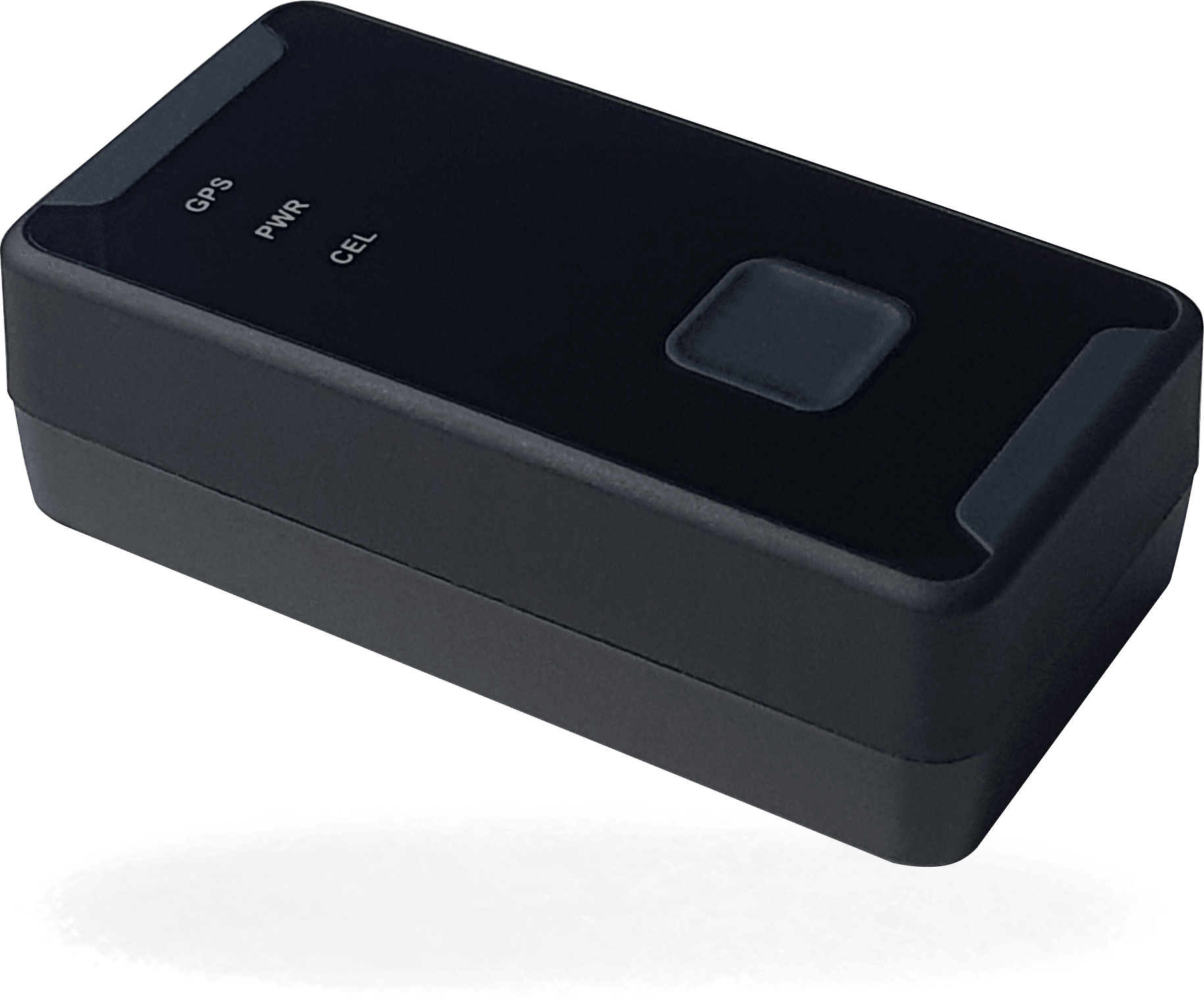

Traceur GPS Capturs GSM
   Length
   77mm
   Width
   39mm
   Depth
   26mm
   Weight
   93g
   Length
   77mm
   Width
   39mm
   Depth
   26mm
   Weight
   93g

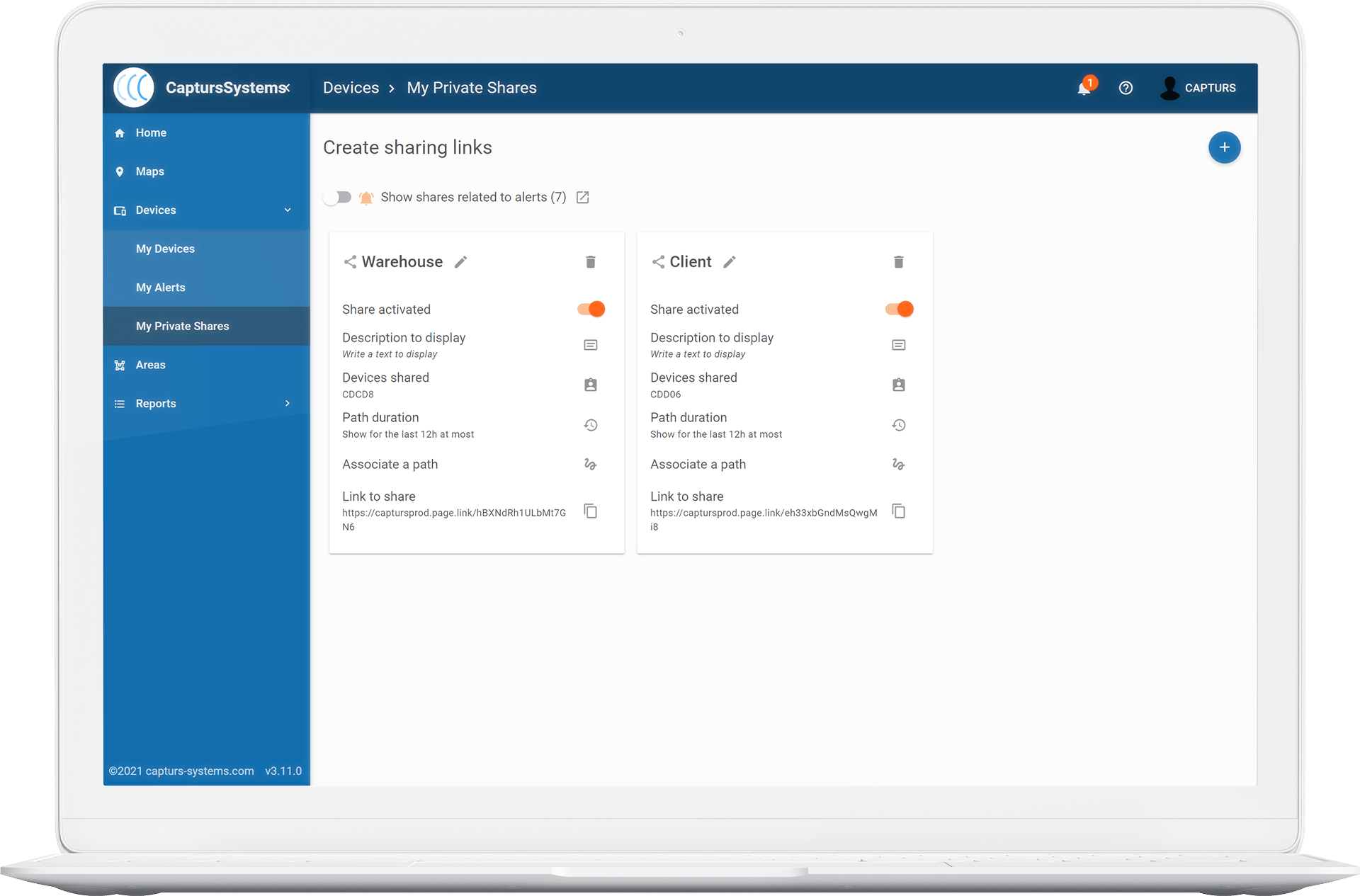

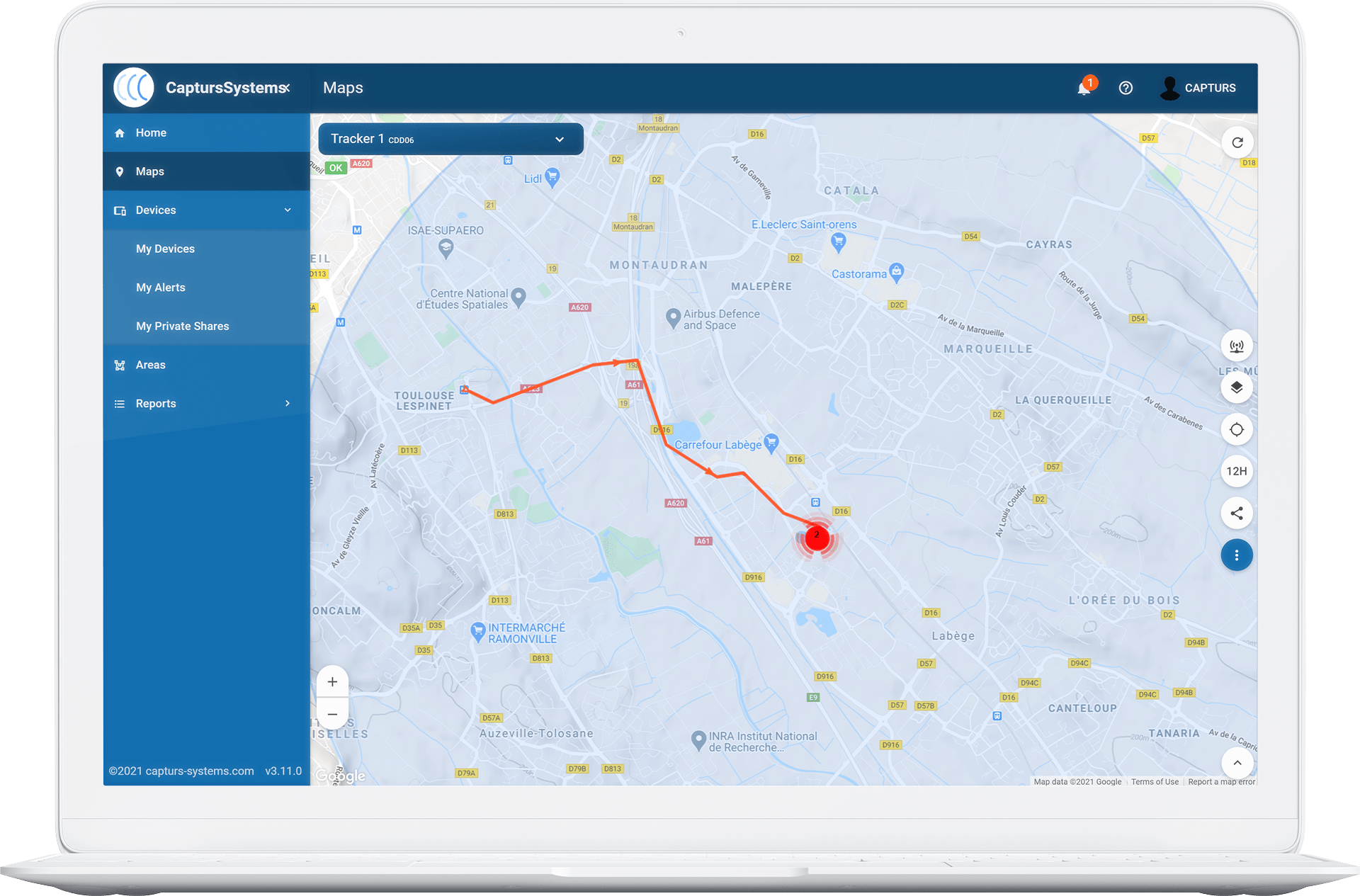

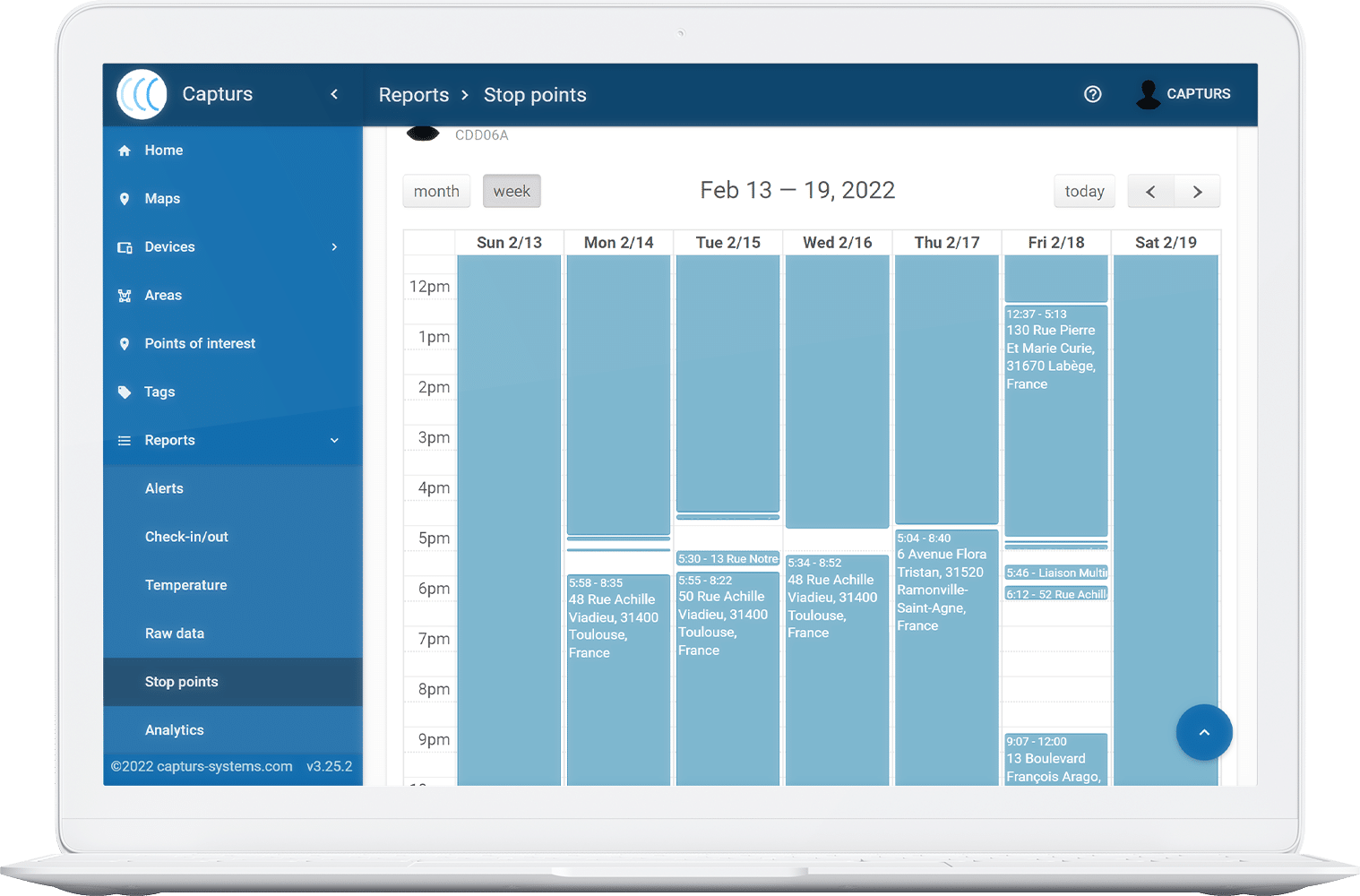

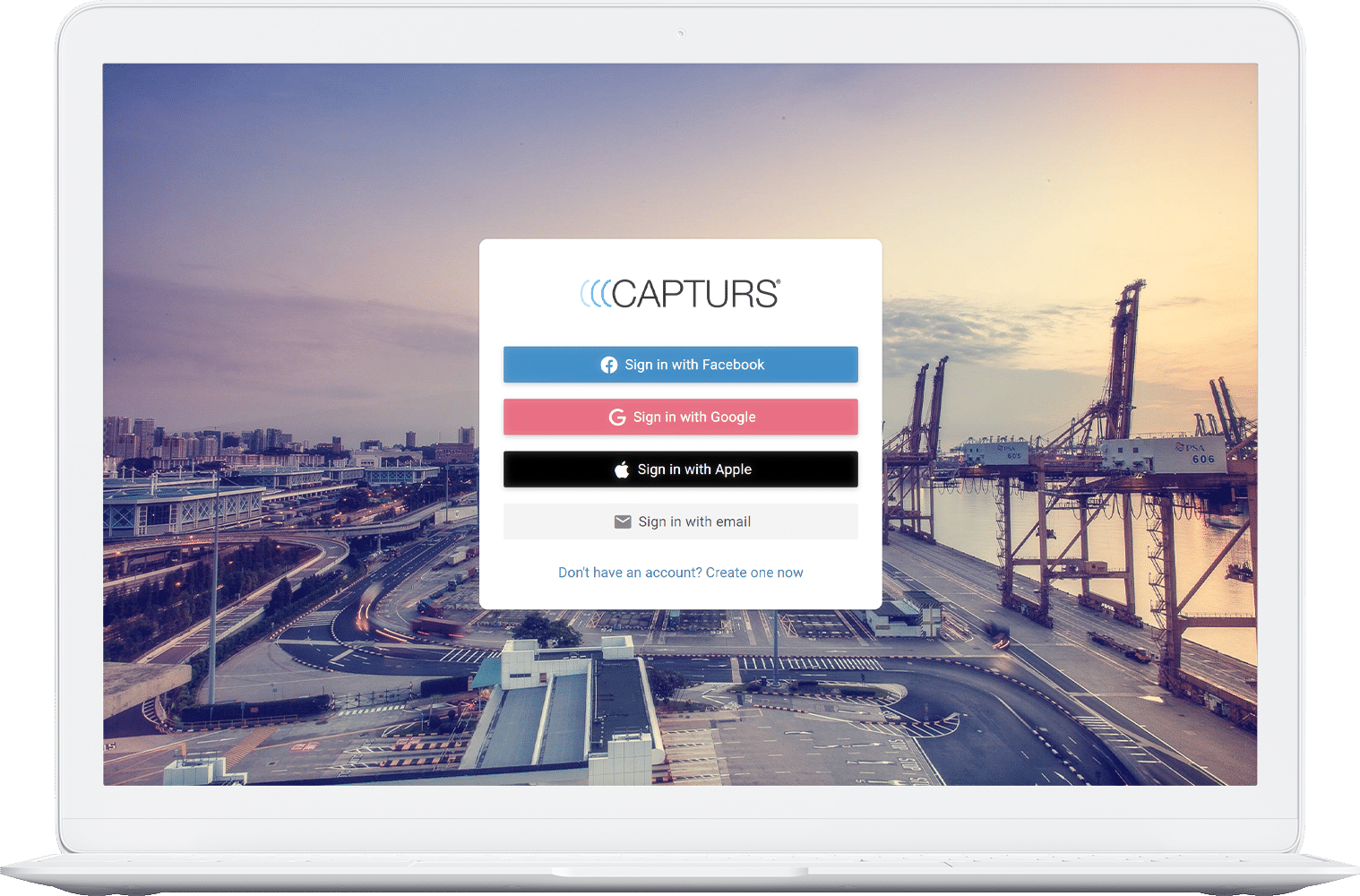

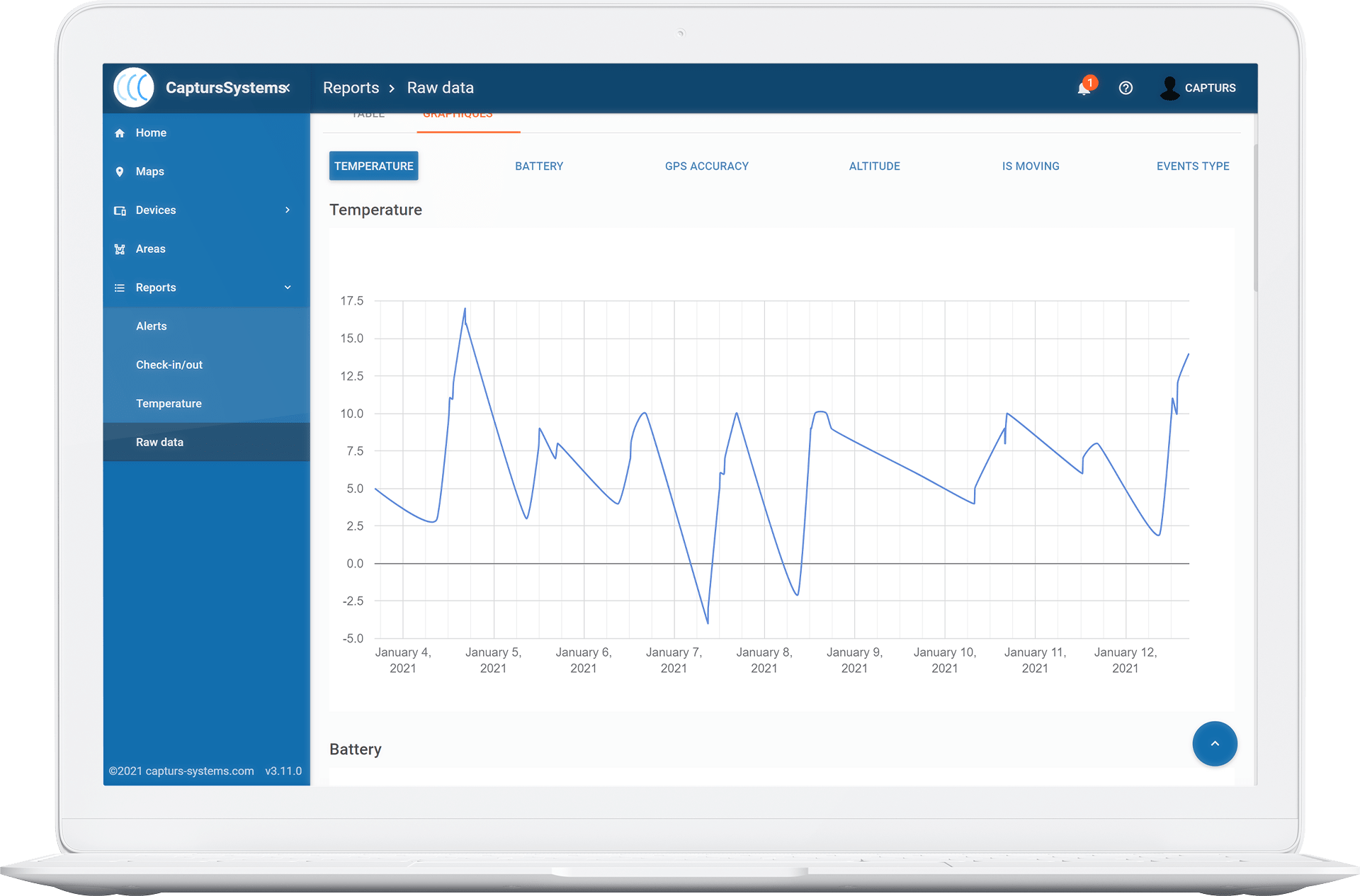

The Capturs platform: simple and powerful

From your computer, tablet or smartphone, access the Connect interface or the Capturs mobile application.

Frequently asked questions.

To find out more about the Capturs Performance GSM GPS Tracker, contact us or consult the FAQ.

GPS tracker Capturs Performance GSM

How do I associate my GPS tracker to my Capturs Account?
1 – On Connect or the Capturs application, open the left menu and click on My Devices.


2 – Click on the button + to access to the addition of the new device.


3 – Complete the serial number (S/N) and the activation key (Key) indicated on the back of the device.
(It is normal that the first letter (A or B) of the S/N does not then appear in the device name because it is the device’s model indicator.)


or


Click on the QR code icon and scan the back of the device.

Why does the interface say “device already registered”?

Capturs GPS trackers can only be registered to one user account. If you try to add them to a second account, this message will appear. You will need to delete it from the old account before you can register it to a new one.

How do I change the name and image of my GPS tracker?
1 – On the Capturs interface, open the left menu and click on My Devices. You can see the information of your trackers (device and/or smartphone).


2 – To change the name of your GPS tracker, click on the icon on the right side of your screen, in the insert corresponding to your GPS tracker.


3 – To change the picture of your GPS tracker, click on the icon on the left side of your screen, in the insert corresponding to your GPS tracker. You can then upload the photo of your choice, within a limit of 2Mo, with the icon .
How do I send an alert?

In order to send an alert, you have to create one and configure it.
Enter the email addresses and/or phone numbers of your relatives in the configuration of your alert.
To send an alert, you must be in an area covered by the Sigfox network or by GSM (depending on the model).

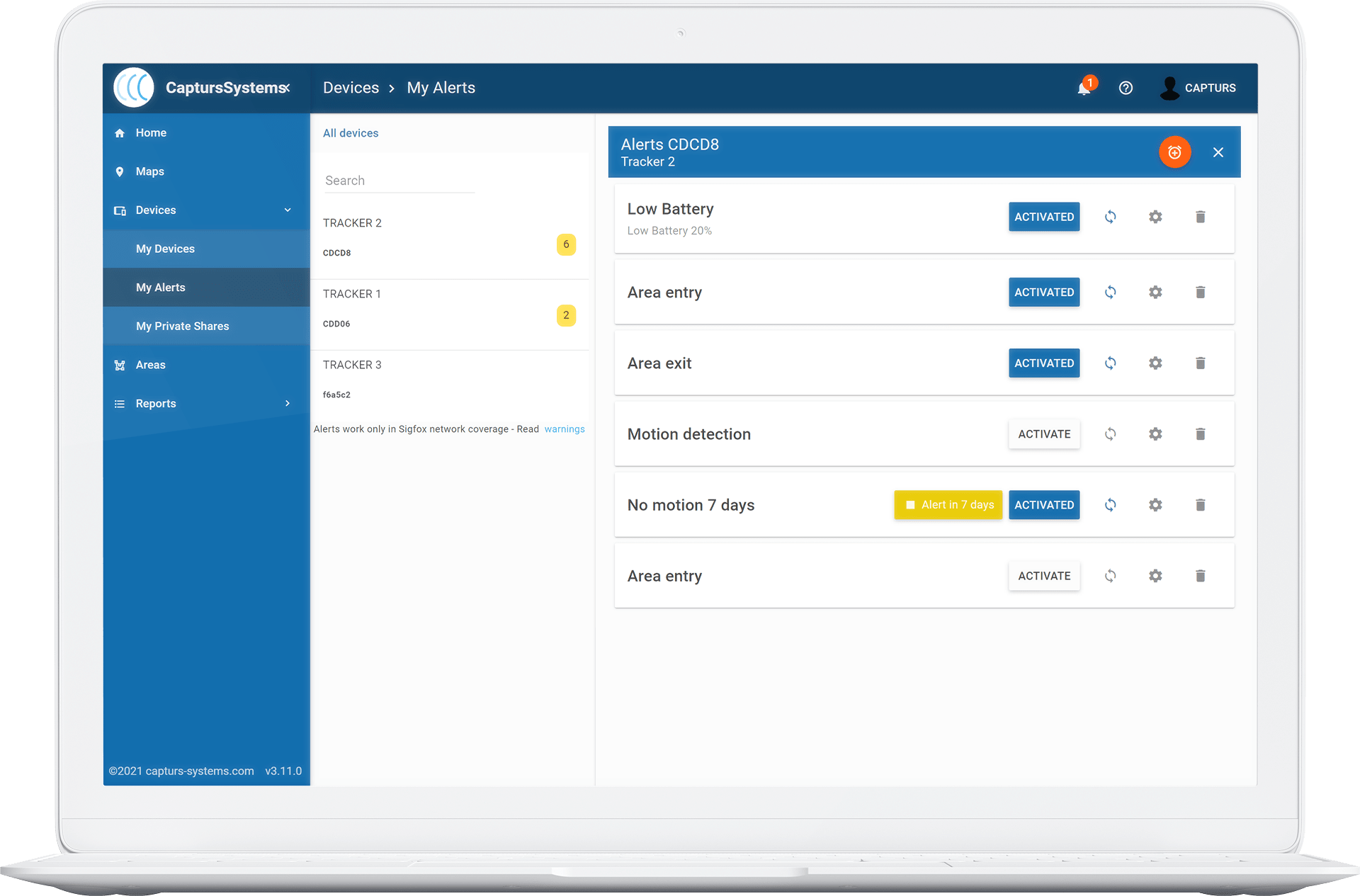

How to create and configure an alert?
1 – On the Capturs interface, open the left menu and click on My Alerts.


2 – Choose the GPS tracker you want to configure.


3 – To create a new alert, click on . Choose the type of alert in the scroll bar that appears.


4 – Click on the icon   to set up your alert.


Possible configurations:
– Add a name to the alert.
– Enable automatic reactivation of the alert.
– Create time slots for triggering alerts.
– Choose the type of sending of the alert (SMS, Email, API Callback)


Alert content:
– Add one or more Emails, phone numbers, etc..
– Customize the subject and content of the alert as you wish.
– Check the “Share link activated” case if you want to share your tracking link in the alert.

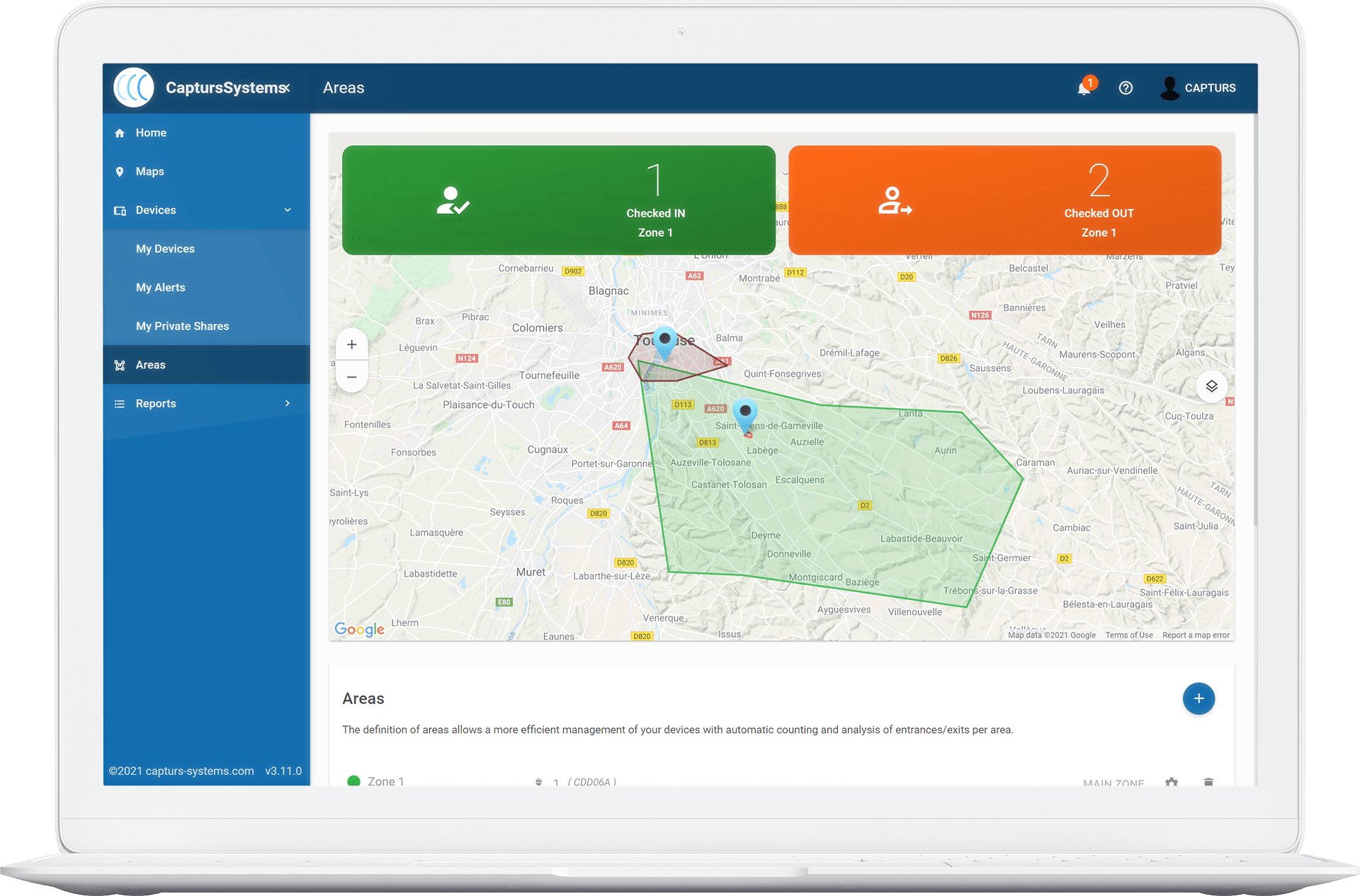

For area alerts:
– Customize the zones by pressing the dots around the red zone.
– Create round or polygonal areas.
– Capturs Systems Connect specific: select an area already registered in the library.

If it’s a click button alert :
Just click on the button in the middle of the GPS tracker according to the chosen alert (1 click, 2 clicks, 4 clicks or a long click). The blue led at the bottom left of the GPS tracker will blink as many times as you clicked on the button.


If it is the 3 clicks alert :
In the case of the 3-click alert, there is an acknowledgement function: after pressing the button 3 times, the “red” and “green” leds will start flashing alternately until the acknowledgement is received, where the green led will flash rapidly. If this is not the case, the red led will blink quickly and the GPS tracker will try to send the alert again 10 minutes later and start blinking alternately until validation or not of the data reception.


If it is a area alert:
Your alert is sent automatically when your GPS tracker (device or smartphone) enters or leaves the area you have configured.


If it is a motion alert:
When your device is stationary and hasn’t moved for a while, your motion alert will be triggered when the tracker’s motion is detected.


If it is a no motion alert:
An alert will be sent when the GPS tracker has been stationary for a set time.


If it is a low battery alert:
An alert will be sent when the battery is less than 20% of its capacity.


If it is a power-off alert:
An alert will be sent when the GPS tracker is turned off, i.e. when someone turns it off.

If it is an unplugging alert:
An alert will be sent when the GPS tracker is unplungged.


If it is an absence alert:
An alert will be sent when the GPS tracker is not present in a predefined area at the scheduled time.


If it is a temperature alert:
An alert will be sent when the temperature is below or above a certain set temperature threshold.

How do I start a live tracking using my Capturs GPS tracker?

To start a live tracking using your Capturs GSP tracker, you need to have it registered on your Capturs account and to have an active subscription for real-time data transmission.

How do I associate my GPS tracker to my Capturs Account?
1 – On Connect or the Capturs application, open the left menu and click on My Devices.


2 – Click on the button + to access to the addition of the new device.


3 – Complete the serial number (S/N) and the activation key (Key) indicated on the back of the device.
(It is normal that the first letter (A or B) of the S/N does not then appear in the device name because it is the device’s model indicator.)


or


Click on the QR code icon and scan the back of the device.

Why does the interface say “device already registered”?

Capturs GPS trackers can only be registered to one user account. If you try to add them to a second account, this message will appear. You will need to delete it from the old account before you can register it to a new one.

Then simply take it with you or fix/place it. The device must be on and with battery to send its position when it is in motion.

The Capturs OBD GPS Tracker must be connected to the vehicle’s OBD II socket and the Capturs Power GPS Tracker must be connected to the vehicle battery.

Why isn’t my GPS tracker sending a position?

If the GPS trackers are transmitting well but no positions are being sent at the same time, this may be due to several phenomena specific to devices using satellite positioning systems.

The main losses of positions come from the signals dropping out between the GPS tracker and the satellites, thus preventing the triangulation of the position:

– From GPS fix just after departure, cold, where the GPS plotter could not see the constellation of satellites, and therefore needed about 3 minutes before starting to move to find the position and thus start to fix its position correctly.

– The outdoor environment: trees, buildings and even clouds can prevent the proper reception of data from a satellite and may cause triangulation to be prevented or accuracy to be lost.

How do I turn my GPS tracker on/off?
Before starting your GPS tracker, consult the quick start guide.


GPS Tracker Model B:
A simple press on the central button of the tracker allows it to be switched on, if there is enough battery, and to start sending positions in real time.
To turn off the tracker, you must keep the button pressed for about 5 seconds. The leds of the tracker will have the following behaviour: after 3 seconds the blue led will light up, then by keeping pressed, the red led will light up about 2 seconds later. You can release the button when the tracker is off.


GPS Tracker Model C/C Beehive:
If the battery is inserted, the GPS tracker starts automatically. If a tab is fitted to the GPS tracker, gently pull it out and gently tighten the 4 screws (standard Model C) to close the case properly.
To turn off the GPS tracker, remove the battery.


GPS Tracker OBD:
To turn the GPS tracker on and off, simply plug and unplug it from the vehicle’s OBD II socket.


GPS Tracker Power:
To turn the GPS tracker on and off, simply plug and unplug it from the vehicle’s battery.


GPS Tracker Performance GSM:
To switch the GPS tracker on and off, simply press and hold the button on the edge for about 5 seconds.


GPS Tracker Endurance GSM/Mini:
To switch the GPS tracker on and off, open the case and press the ON/OFF switch located inside.
How long does the GPS trackers battery last?

Battery life varies according to the use and stops of the Capturs GPS trackers. It can also vary according to the configurations made by our teams or by yourself on the Capturs software (only available for the Model B or Model A). It can be up to several months/years.

The battery life of the Capturs OBD and POWER GPS trackers is unlimited as it is linked to that of the vehicle.

GPS tracker model Estimated battery life
Model B
Performance GSM
Model C
Model C Beehive
Endurance GSM
Mini
OBD
Power

Estimated battery life by model :

Model B
Performance GSM
★★★★☆

Model C
Model C Beehive
Endurance GSM
Mini
★★★★★

OBD
Power

How much does my tracker weigh and measure?
Model B 68 x 42 x 24 mm 55g
Model C 75 x 75 x 35 mm 60g
Model C Beehive 87 x 57 x 24 mm 60g
Performance GSM 39 x 26 x 77 mm 93g
Endurance GSM 85 x 49 x 30 mm 140g
Mini 64 x 50 x 22 mm 82g
OBD 48 x 48 x 22 mm 58g
Power 135 x 65 x 15 mm 130g



Model B GPS tracker: Measures 68x42x24mm and weighs 55g.

Model C GPS tracker: Measures 75x75x35mm and weighs 60g.

Model C Beehive GPS tracker: Measures 87x57x24mm and weighs 60g.

Performance GSM GPS tracker: Measures 39x26x77mm and weighs 93g.

Endurance GSM GPS tracker: Measures 85x49x30mm and weighs 140g.

Mini GPS tracker: Measures 64x50x22mm and weighs 82g.

OBD GPS tracker: Measures 48x48x22mm and weighs 58g.

Power GPS tracker: Measures 135x65x15mm and weighs 130g.

How to charge and know the percentage of GPS tracker battery remaining?
We provide a Micro-USB (Model B) or USB Type-C (GSM Performance) cable. To charge the GPS tracker, simply plug it into the cable and plug it into a USB socket or your computer.


Behaviour of the LEDs during charging:
Model B: fixed: charging | fixed: charging is complete
Performance GSM: flashes rapidly: charging | fixed: charging is complete


To find out the battery percentage of your GPS tracker, log on to the web platform or the application.

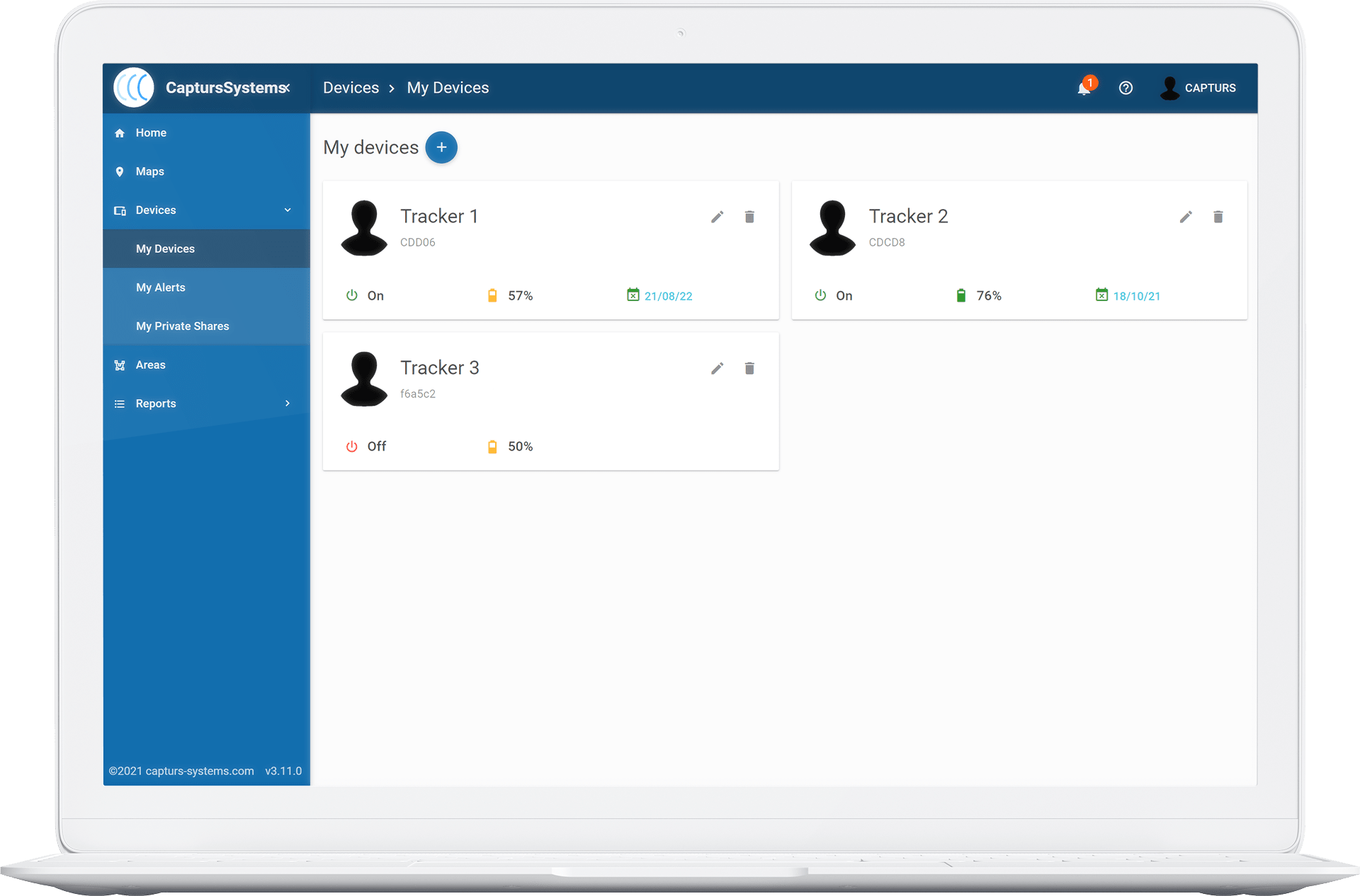

In “My Devices”:
In the left menu, “Devices” then “My Devices”, you can see the information of your GPS tracker and its battery percentage.


On the map:
Select the GPS tracker for which you want to know the information in the top blue box.
Click on the icon at the bottom right of your screen and the information will appear with the percentage of your battery.


“Low battery” alert:
Create a low battery alert. The alert will be triggered when the battery is at less than 20% of its capacity and you will receive an SMS or email, depending on the configuration of your alert.
Is my GPS tracker waterproof?

The Model B (and A) Capturs GPS tracker is not waterproof and has no IP certification, but we provide with each GPS tracker a waterproof pouch that allows the GPS tracker to be sheltered from water.

The Model C Capturs, Endurance GSM, Mini and Power GPS trackers are certified IP67. They are waterproof, dustproof and weather resistant.

Please note that the Model C Beehive GPS tracker is not waterproof, unlike the standard Model C.

The GPS tracker Capturs Performance GSM is IPX5 certified. It is protected against water splashes from all directions.

What do the flashing leds mean?

LED GPS:

Successful GPS fix fixed
GPS fix in progress fast flash
Failed GPS fix slow flash
GPS is off dark

LED PWR:

Power on and normal dark
Charging completed fixed
Charging in progress fast flash
Power key is pressed to power off the tracker fast flash
Abnormal fast flash
Power low alert slow flash

LED CEL:

Searching for network fast flash
Registered to network slow flash
Power off dark
SIM-PIN locked fixed

LED GPS:
fixed: Successful GPS fix
fast flash: GPS fix in progress
slow flash: Failed GPS fix
dark: GPS is off



LED PWR:
dark: Power on and normal
fixed: Charging completed
fast flash: Charging in progress
fast flash: Power key is pressed to power off the tracker
fast flash: Abnormal
slow flash: Power low alert



LED CEL:
fast flash: Searching for network
slow flash : Registered to network
dark: Power off
fixed: SIM-PIN locked

What is the frequency of messages sent by my GPS tracker?
Model B Live geolocation: 10 min / Tracking accuracy: 3 min (1)
Model C / C Beehive Live geolocation: 15 min / Tracking accuracy: 5 min
Performance GSM Live geolocation: 60 s / Tracking accuracy: 60 s (2)
Endurance GSM Live geolocation: 2 positions/day / Tracking accuracy: 2 positions/day (2)
Mini Live geolocation: 2 positions/day / Tracking accuracy: 2 positions/day (2)
OBD Live geolocation: 30 s / Tracking accuracy: 30 s
Power Live geolocation: 30 s / Tracking accuracy: 30 s
(1) It is possible to increase this frequency in the PC/Mac Capturs software by connecting your Model B GPS tracker to your computer.



(2) It is possible to change this frequency through our support team. Please note that the higher the frequency, the less time the battery will last.

Model B:
Live geolocation: 10min / Tracking accuracy: 3min (1)

Model C / C Beehive:
Live geolocation: 15min / Tracking accuracy: 5min

Performance GSM:
Live geolocation: 60s / Tracking accuracy: 60s (2)

Endurance GSM:
Live geolocation: 2 positions/day / Tracking accuracy: 2 positions/day (2)

Mini:
Live geolocation: 2 positions/day / Tracking accuracy: 2 positions/day (2)

OBD:
Live geolocation: 30s / Tracking accuracy: 30s

Power:
Live geolocation: 30s / Tracking accuracy: 30s

(1) It is possible to increase this frequency in the PC/Mac Capturs software by connecting your Model B GPS tracker to your computer.

(2) It is possible to change this frequency through our support team. Please note that the higher the frequency, the less time the battery will last.

What types of alerts can I send?
You can send different types of alerts depending on your tracker.


Model B (or A) GPS tracker: Area entry, area exit, motion detection, no motion, powering-Off, absence, 3 press button, 1 press button, 2 press button, 4 press button, 1 long press button and low battery.


Model C GPS tracker: Area entry, area exit, motion detection, no motion, absence, low battery.


Performance GSM, Endurance GSM, Mini GSM GPS trackers: Area entry, area exit, motion detection, no motion, absence, low battery.


OBD GSM, Power GSM GPS trackers: Area entry, area exit, motion detection, no motion, absence, unpluging.


Smartphone tracker via Capturs application: Area entry, area exit, motion detection, no motion.

Capturs Systems Connect interface specific functions

How do I access the Capturs Systems Connect platform?
The Capturs Systems Connect platform is available via this URL: https://connect.capturs-systems.com/.
How do I use the “Analytics” feature?
The Analytics feature allows you to have advanced analysis on the activity and events of your Capturs trackers. These analyses are designed with Google Data Studio using your trackers data. They are represented in the form of various tables and graphs.


How do I access it?


1 – On the Capturs interface, open the left menu and click on Analytics.


2 – Go to the advanced analyses: select date, zone and tracker. Scroll through the different tables and graphs by clicking on < > at the bottom of the page. Click on Google Data Studio at the bottom of this page for additional analyses.


You don’t have access to this feature? Contact support@capturs.com.
How do the zones work?
1 – On the Capturs interface, open the left menu and click on Areas.


2 – Click on the button + to access to the addition of the new area.


3 – Create a specific area by moving the points that surround it, give it a name, a color and validate. Create all the areas you need this way.


4 – All the areas you created are now on the map at the top of this same page. They are also saved in the library of your account in order to reuse them by creating area alerts.


5 – The check in / check out table is at the bottom of the same page. It allows you to have precise data on the trackers that have entered or left these areas, as well as the times and dates.
How to understand, use and customize the raw data table?
1 – On the Capturs interface, open the left menu and click on Raw data.


2 – Select a tracker in the search bar to bring up the table.


3 – Click on to choose the columns you are interested in. The columns are : Date, type, Sigfox sequence, event sequence, is moving, temperature, battery charge, GPS latitude, GPS longitude, GPS position, GPS altitude, GPS speed, GPS accuracy, software version, time stamp and tracker ID.


4 – You can now analyze the table and graphs that correspond to the raw data emitted by your tracker. These are doubts the data sent by the tracker to each event received by the tracker.
What are the points of interest?

Points of Interest (POIs) are your own landmarks. You can easily create them by entering a street address or by pointing to the map. They will be displayed on the map if you select the “points of interest” icon on the right side of the screen. Also, easily find your points of interest on the map by filtering them using the top bar that appears when you have saved POIs.
With the “Labels” tool, customize your points of interest even better by categorizing them with colors.

What does the trajectory from the network triangulation correspond to?

When you click on on the map, a pink trajectory appears. It corresponds to the trajectory according to the atlas points, calculated by the Sigfox network and according to the signal levels received for the last message. This trajectory can be useful to see the position of a tracker when no position has been received.

What reports do I have access to?
1 – On the Capturs interface, open the left menu and click on Reports.


2 – You have access to the following reports: alerts, check-in/out, raw data, stop points and analytics.


3 – You can export the data by clicking on CSV EXPORT.

The best of the GSM network.

The best coverage in the world. Choose the right SIM card for your travels: Europe or Worldwide.

Traceurs GPS Capturs dans la ville de Paris

Countries included in the Europe SIM subscription: Austria, Germany, Lithuania, Slovakia, Belgium, Gibraltar, Luxembourg, Slovenia, Bulgaria, Greece, Malta, Spain, Croatia, Hungary, Mayotte, Sweden, Cyprus, Iceland, The Netherlands, Switzerland, Czech Republic, Ireland, Norway, United Kingdom, Denmark, Italy, Poland, France, French Guiana, Guadeloupe, La Désirade, Marie-Galante, Estonia, Kosovo,  Portugal, Martinique, Saint Martin, Finland, Latvia, Reunion, Saint Barthélémy, Liechtenstein, Romania.

Countries included in the World SIM subscription (including countries in the Europe zone): Albania, Israel, New Zealand, Turkey, Australia, Japan, Republic of Korea, Ukraine, Belarus, Macedonia, Russian Federation, USA, Bosnia & Herzegovina, Mexico, Serbia, UK Jersey, Canada, Moldova, Singapore, UK Guernesey, China, Montenegro, South Africa, UK Isle of Man, Hong Kong (China), Morocco, Taiwan.
Afghanistan, Dominican Republic, Mali, Suriname, Algeria, Egypt, Maurituis, Brunei Darussalam, Andorra, Ethiopia, Monaco, Tadzhikistan, Anguilla, El Salvador, Mozambique, Tanzania, Antigua & Barbuda, Ecuador, Montserrat, Thailand, Armenia, Faroe Islands (Den.), Myanmar, Trinidad and Tobago, Argentina, Gabon, Namibia, Tunisia, Aruba, Gambia, Netherlands Antilles, Turks & Caicos, Azerbaijan, Georgia, Nicaragua, Uganda, Bahamas, Ghana, Niger, United Arab Emirates, Bahrain, Grenada, Nigeria, Uruguay, Bangladesh, Guatemala, Oman, Uzbekistan, Barbados, Guinea, Republic of Pakistan, Venezuela, Belize, Guinea-Bissau, Palestinian Authority, Vietnam, Benin, Guyana, Panama, Virgin Islands (UK), Bolivia, Haiti, Paraguay, Yemen, Botswana, Honduras, Peru, Zimbabwe, Brazil, India, Philippines, Burkina Faso, Indonesia, Puerto Rico, Burundi, Ivory Coast, Qatar, Cambodia, Iran, Rwanda, Cameroon, Jamaica, Saints The, Cape Verde, Jordan, Saudi Arabia, Cayman Islands, Kazakhstan, Senegal, Chad, Kenya, Sri Lanka, Chile, Kuwait, St. Barthelemy, Kyrgyzstan, St. Kitt’s & Nevis, Colombia, Liberia, St. Lucia, Congo (The Republic of Congo), Madagascar, St. Martin (Fr. Caribbean), Costa Rica, Malaysia, Sierra Leone, Dominica, Malawi, St. Vincent.
